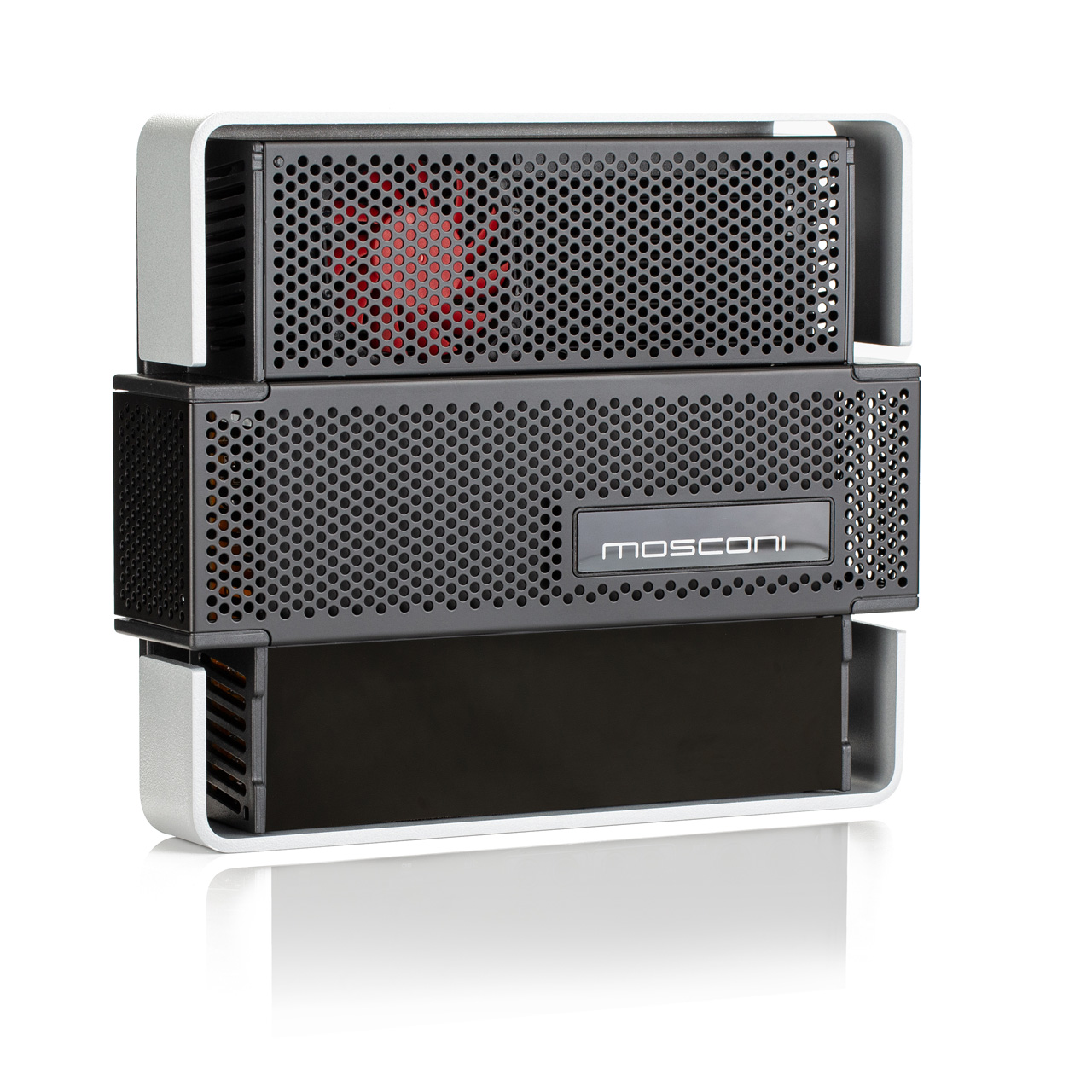

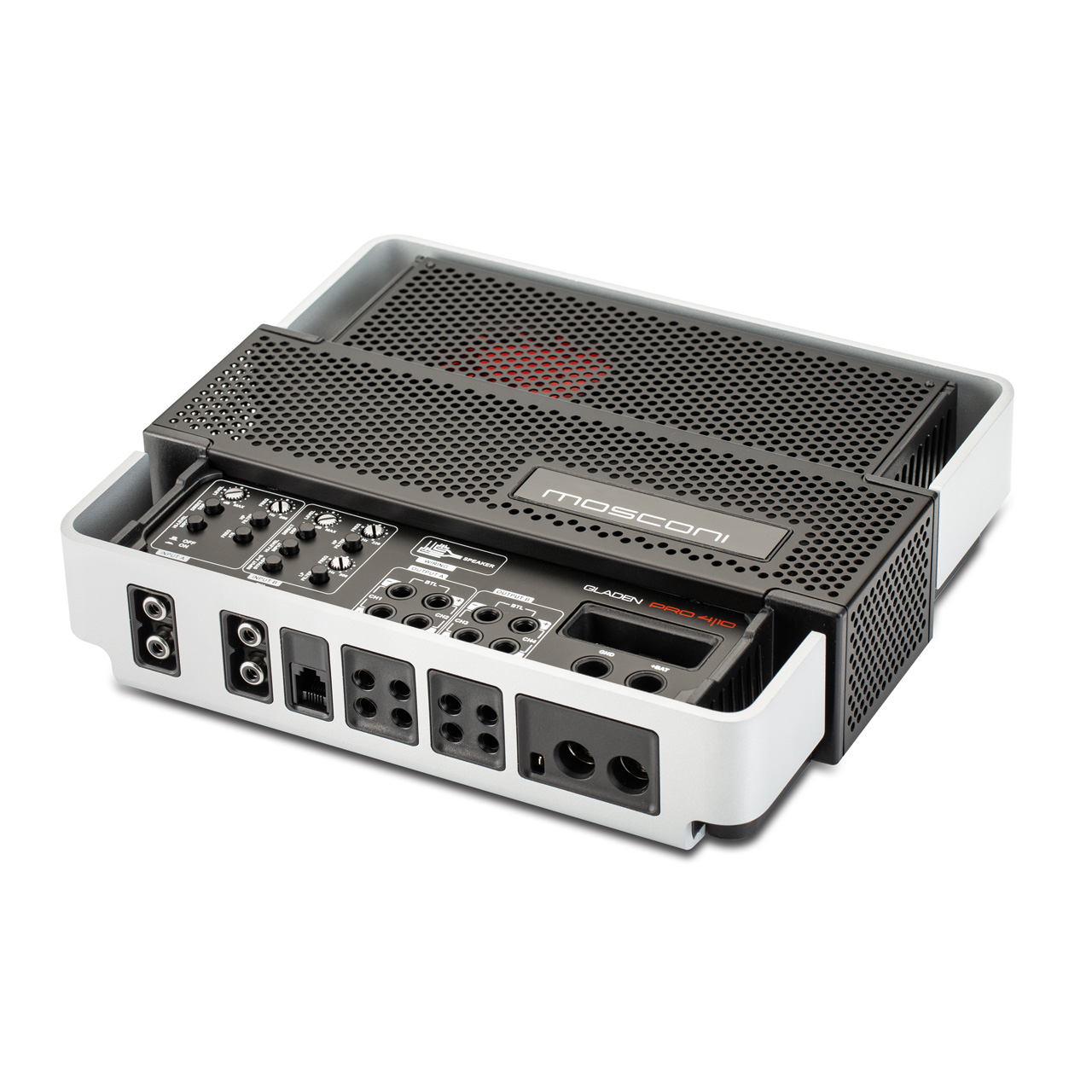

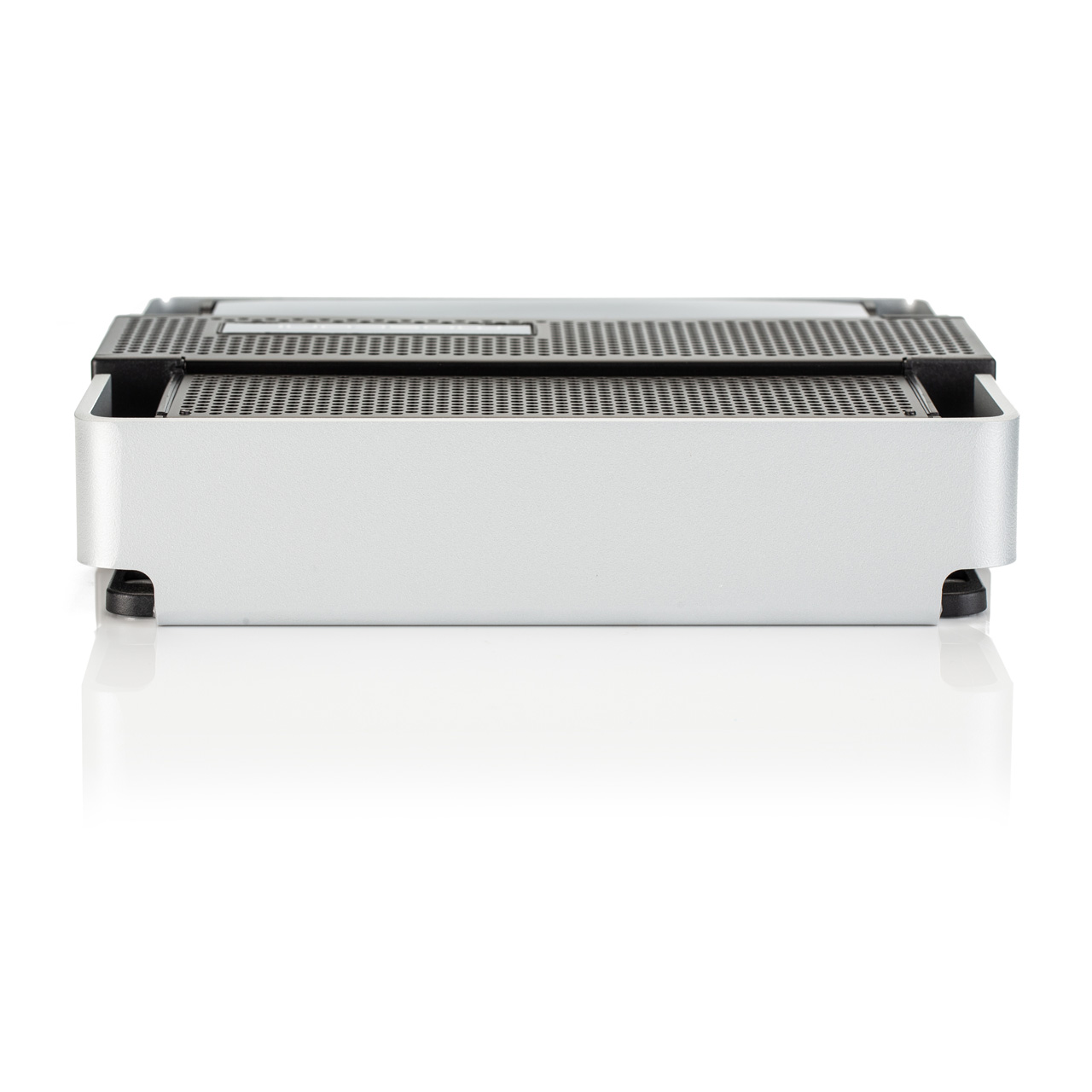

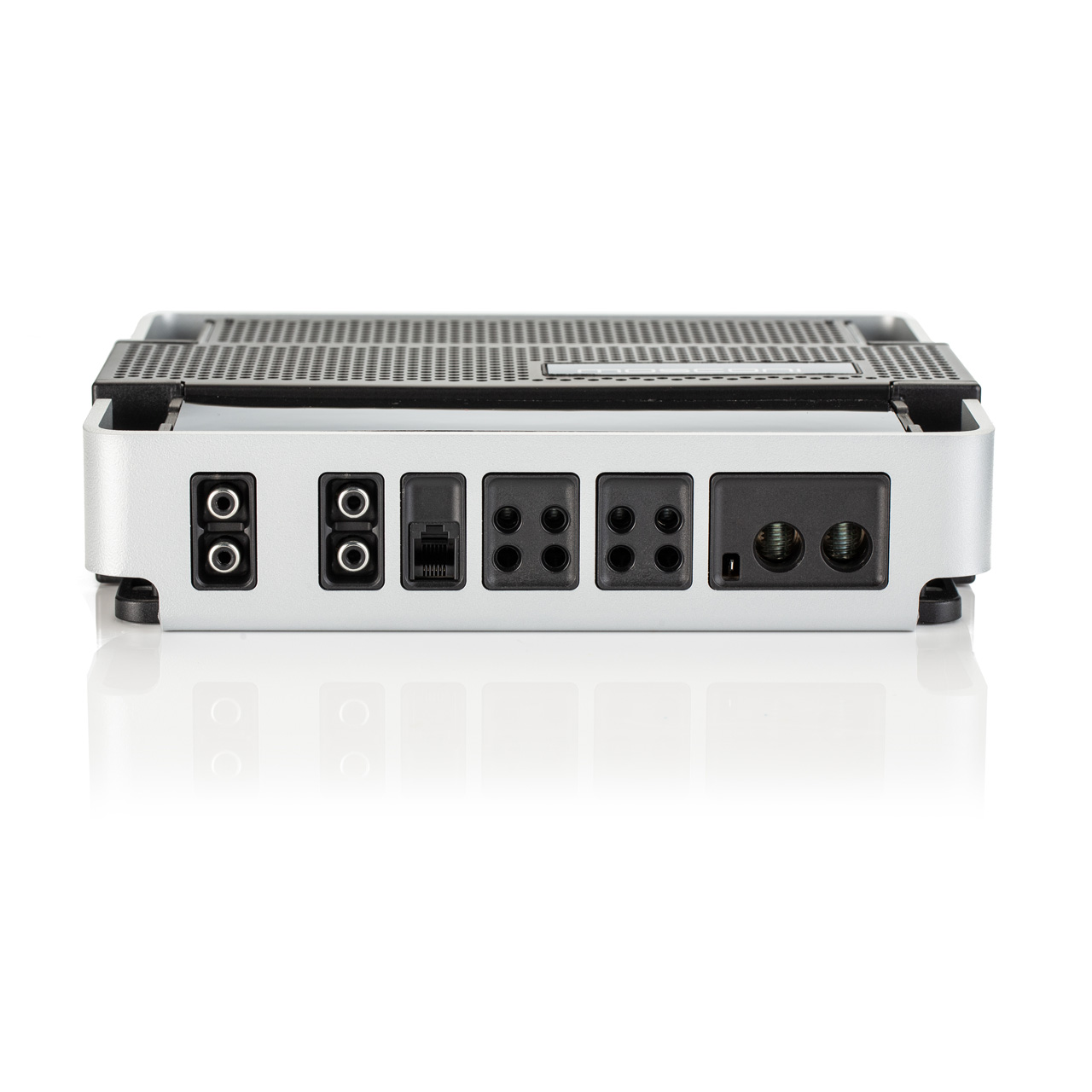

Mosconi Pro 4|10
4 channel high performance amplifier
4 channel amplifier
Class AB technology
Up to 4 x 160 Watts @ 2 Ohm
The Mosconi Pro 4|10 amplifier is a classic 4 channel Class AB amplifier. Equipped with active crossovers, autosense function as well as a remote level control input, it is very versatile in the vehicle.
DDSP - Direct DSP (bypassing all preamplifier circuits)
High level / low level selectable input
Autosense (only in BTL mode)
RTC - Allows volume regulation by remote control (optional)
Power supply and temperature management controlled by microprocessor
Output Power
Output power @ 4Ω: 4 x 120 Watts
Output power @ 2Ω: 4 x 160 Watts
Bridged Output power @ 4Ω: 2 x 320 Watts
Specifications
Input sensitivity: 0.35 V ÷ 12 V (6.2 V in DDSP mode)
Crossover:
CH 1/2= HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
CH 3/4= HP: 50 ÷ 200 Hz & LP: (430 ÷ 5000 Hz)
Dimensions: 235 x 205 x 55 mm
Weight: 2,3 kg
Housing: Available in black/silver finish
